SRT-10 spark plug wire change
Old January 31st, 2009, 01:47 AM   #1
n00b

j-rho is offline
Join Date: Aug 2007
Posts: 22
j-rho is a B-Teamer with 50 points
Rep Power: 0
SRT-10 spark plug wire change

This was kind of a pain in the butt. If I wasn't already totally certain my wires were shot, I don't think I'd do it again, even if there was a shred of truth to vendor HP gain claims. I took a few pictures along the way and recently completed the process, thought I'd share. I didn't look in the manual throughout this process, so this way isn't necessary the best, or even the right, way to do this. If you try to do this and blow up your hemisphere, don't blame me. My car is a 2004, so this should work for the '03-'06 cars.


Step 1: Open the hood (don't worry, it gets harder)


Step 2: Remove airbox. This is pretty straightforward, two plastic screwy things in front and a flat-head-screw clamp in rear.


Step 3: Remove connectors to throttle body. The throttle cable comes out when you pinch the plastic thing back through the black bracket, and un-clip the cable end. There are four or so electical connectors, some are simple pinch-and-pull, others have a sort of plastic safety lock to them. There are two cables on brackets under the throttle body, I found it easiest to just unbolt the brackets. There's some kind of PCV pipe there too. If you have trouble getting through this step, you may not wish to continue...


Step 4: Unbolt intake manifold. It gets a little tricky here. IIRC, there are basically 2 bolts per cylinder, 10 per side for a total of 20. Everything uses the same fasteners - 11mm bolts, and are keyed on top for a T30 Torx bit. The closest ones are easy to get with your favorite wrench. The rearmost one on the driver side I found not too bad once I moved the plug wires out of the way and went at it with a short (~5") wrench. The rearmost one on the passenger side I used a socket with a universal, not too bad either. The front-most one on the driver side, I found easier once I had unbolted the fuel rails and lifted them out of the way. This moves the between-rails fuel line out of the way of that bolt.
Speaking of fuel rails, you probably want to relieve fuel pressure here. Not sure what the manual says. I unclipped the injector electrical plugs by "spreading" the plastic sides and pulling them back. With only 11k miles mine felt pretty brittle already so be careful. I chose to leave the injectors in place in the fuel rail, which didn't cause any fuel leakage problems, but if you pull an injector out of the rail without relieving pressure, you'll have a mess. Three of the same-spec bolts per side hold in the rails. Once unbolted, pry slowly can carefully to lift the mess out. Be gentle with the injectors too once they're out, they're fragile.
Oh, should probably mention you can/should disconnect the battery if you're worried about shorting stuff out. I didn't but then again I may have eaten too much paste in school.
Anyway, there are about 3 per side (the "inner middle 3") you can't get an open-ended wrench around, and there isn't enough room from the sides for an open-ended wrench or ratchet. For those, use a socket on a couple extensions, and feed that whole mess through the openings between the runners. Ends up being pretty easy if you do it that way, with one exception-


The second-rearmost bolt on the driver side is a really crappy mess. The usual attack-from-above trick doesn't work because of the angle of the runner. Trying to do anything from the side is made way tougher by the brake booster port. My 3/8" ratchet hardware wouldn't fit through the smaller hole in the intake here. Had to dig through my Fisher Price tools (joke) to find some 1/4" drive stuff. As you can see above, I couldn't really get my small 11mm socket to fit on the bolt. I don't have a universal for my 1/4" drive stuff, but I'm not sure it would have helped. There is probably some kind of fancy open-ended crow's foot wrench, of super-low-profile ratchet hardware that would make this part easier, but nothing in my pretty standard toolset would do it. I ended up getting it out (and back in later) with my Torx bit, but the whole thing was a little dodgy.


Step 5: Remove intake. In addition to what's been done already, there is the brake booster connection and a PCV connection on the driver and passenger sides to remove. Also, the injector wiring harness has 2 yellow-ish push-in clips per side holding it to the manifold, remove those now. Try to tuck the injector wires back underneath so they don't get caught removing the manifold.

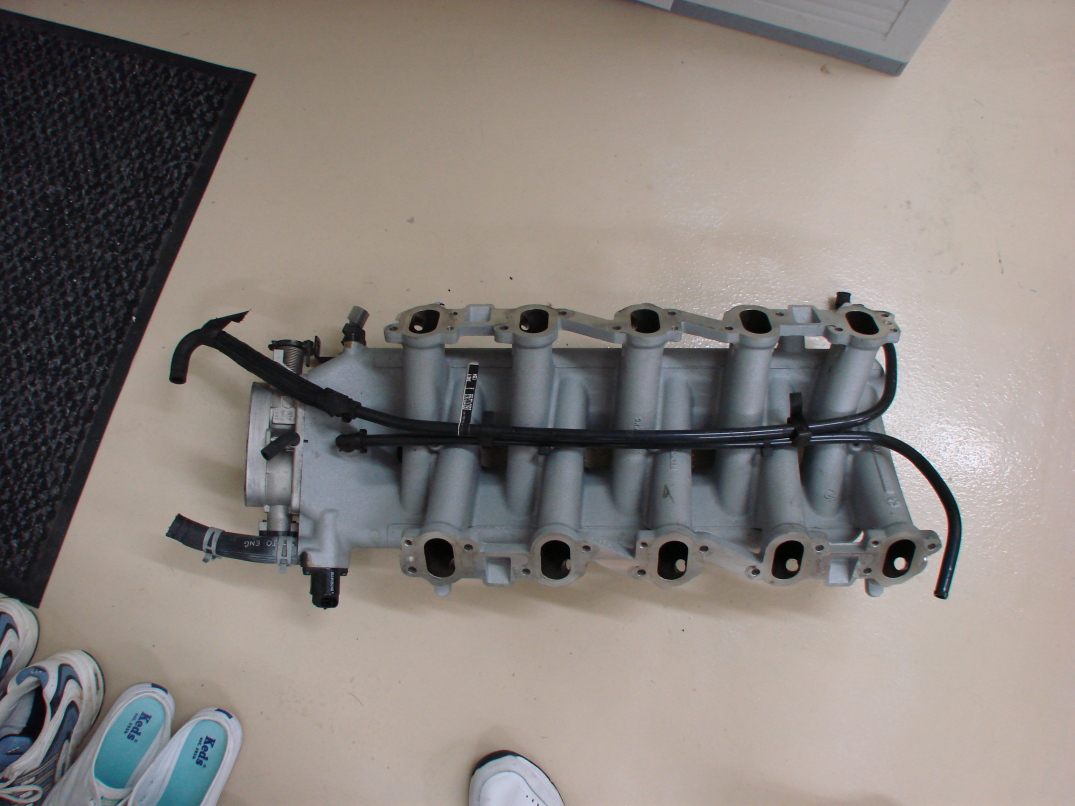

Once that's done, the whole beast should lift out-

Quote:
The tortoise lays on its back, its belly baking in the hot sun, beating its legs trying to turn itself over but it can't. Not without your help. But you're not helping.

And hey, at last, the other end of our spark plug wires!



Step 6: Old wire removal/new wire install. Old ones should come out pretty easily. I ordered new wire holders with my wires (the AB wires BTW) so I elected to replace them all. My particular car had a pretty rough previous life, having had headers, and the hastily/sloppily been reverted to stock manifolds and heat shields. The accessible wire holders were all cracked to pieces, or missing entirely. It's just as well, their diameter would have had a hard time holding the AB wires. As it was, I had a pretty hard time getting the AB wires to fit into the new wire holding clip things. Maybe I'm just a pussy?
Take your time to run the wires the way you want so they look how you want. I suck at aesthetics but it still took me a while to keep 'em from being too tangled. As you put them in the holders, be sure to leave some slack so they don't get tugged when you close the holder thing up.

Old clips on right, new on left-


Here's how I knew I needed new plug wires, this plug boot, as well as a couple others, had been resting against a sharp edge of the heat shield and got all cut and toasted.


Here's the passenger side pretty much put together. I re-used the black plastic shielding stuff from the stock wires on the AB wires, which is probably overkill, but whatever. I don't want to ever have to do this again, unless maybe I'm throwing on some race heads or something next time.


Installation is pretty much the reverse or removal. I took this opportunity to clean some things up like the manifold and throttle body, and vacuum up all the crap that'd fallen in the V engine's valley. That one bolt on the driver side becomes a problem again, I had a hard time convincing it to start threading in because of the angles. You'll have to be patient, or get the magic tool I don't have, whatever it is.

As a bit of advice, when bolting together things like this where there's 2 big flat planes coming together to form a seal, it is usually good to try to jump around a bit from bolt-to-bolt as you tighten, and do it in a few stages. Sort of like when bolting down a cylinder head, it helps ensure things come together squarely and form a good seal.


All done! Enjoy a beer and try not to ever do again whatever it is that necessitated this wire change-out.
__________________
--Jason Rhoades
'04 Black Mamba 002/200
  Reply With Quote Quick reply to this message
Sponsored Links
Advertisement


Old February 3rd, 2009, 05:50 PM   #2
Senior Member

xjrguy's Avatar

xjrguy is offline
Join Date: Apr 2008
Posts: 1,550
xjrguy is not afraid of bears with 3220 pointsxjrguy is not afraid of bears with 3220 pointsxjrguy is not afraid of bears with 3220 pointsxjrguy is not afraid of bears with 3220 pointsxjrguy is not afraid of bears with 3220 pointsxjrguy is not afraid of bears with 3220 pointsxjrguy is not afraid of bears with 3220 pointsxjrguy is not afraid of bears with 3220 pointsxjrguy is not afraid of bears with 3220 pointsxjrguy is not afraid of bears with 3220 pointsxjrguy is not afraid of bears with 3220 points
Rep Power: 34
Great writeup and pics.

Questions.

Did you use a torque wrench on the intake bolts when re-assembling and if so what are the torque values for those bolts.
  Reply With Quote Quick reply to this message

Old February 3rd, 2009, 06:22 PM   #3
Senior Member

viperjim's Avatar

viperjim is offline
Join Date: Apr 2007
Posts: 3,452
viperjim is not afraid of bears with 15530 pointsviperjim is not afraid of bears with 15530 pointsviperjim is not afraid of bears with 15530 pointsviperjim is not afraid of bears with 15530 pointsviperjim is not afraid of bears with 15530 pointsviperjim is not afraid of bears with 15530 pointsviperjim is not afraid of bears with 15530 pointsviperjim is not afraid of bears with 15530 pointsviperjim is not afraid of bears with 15530 pointsviperjim is not afraid of bears with 15530 pointsviperjim is not afraid of bears with 15530 points
Rep Power: 118
Nice write up. I did not realize that the plugs were located under the manifold. WTF was Dodge thinking?
  Reply With Quote Quick reply to this message


Old February 3rd, 2009, 06:27 PM   #4
Senior Member

xjrguy's Avatar

xjrguy is offline
Join Date: Apr 2008
Posts: 1,550
xjrguy is not afraid of bears with 3220 pointsxjrguy is not afraid of bears with 3220 pointsxjrguy is not afraid of bears with 3220 pointsxjrguy is not afraid of bears with 3220 pointsxjrguy is not afraid of bears with 3220 pointsxjrguy is not afraid of bears with 3220 pointsxjrguy is not afraid of bears with 3220 pointsxjrguy is not afraid of bears with 3220 pointsxjrguy is not afraid of bears with 3220 pointsxjrguy is not afraid of bears with 3220 pointsxjrguy is not afraid of bears with 3220 points
Rep Power: 34
Quote:
Originally Posted by viperjim View Post
Nice write up. I did not realize that the plugs were located under the manifold. WTF was Dodge thinking?
Presentation obviously.

Too bad there wasn't a way to do COP instead.
  Reply With Quote Quick reply to this message

Old February 3rd, 2009, 08:27 PM   #5
Senior Member

hdscreens is offline
Join Date: Nov 2008
Location: san antonio,TX
Posts: 875
hdscreens is The Man with 2088 pointshdscreens is The Man with 2088 pointshdscreens is The Man with 2088 pointshdscreens is The Man with 2088 pointshdscreens is The Man with 2088 pointshdscreens is The Man with 2088 pointshdscreens is The Man with 2088 pointshdscreens is The Man with 2088 pointshdscreens is The Man with 2088 pointshdscreens is The Man with 2088 pointshdscreens is The Man with 2088 points
Rep Power: 25
Quote:
Originally Posted by viperjim View Post
Nice write up. I did not realize that the plugs were located under the manifold. WTF was Dodge thinking?
I was wondering myself just last week when I cleaned out the throttle body and the thought of changing the wires came to mind where the rest of the wires were located.


Questions to those that can answer:

My 05 seems to take a while to start up, it like turns stalls for a millisecond then fires up. Could this be due to the wires needing replacement? My 05 has about high 32k miles on it.

About how much does Dodge charge to replace wires? I would call and ask dodge myself but I keep forgetting to do that and will keep forgetting.
  Reply With Quote Quick reply to this message

Old February 3rd, 2009, 08:37 PM   #6
Senior Member

xjrguy's Avatar

xjrguy is offline
Join Date: Apr 2008
Posts: 1,550
xjrguy is not afraid of bears with 3220 pointsxjrguy is not afraid of bears with 3220 pointsxjrguy is not afraid of bears with 3220 pointsxjrguy is not afraid of bears with 3220 pointsxjrguy is not afraid of bears with 3220 pointsxjrguy is not afraid of bears with 3220 pointsxjrguy is not afraid of bears with 3220 pointsxjrguy is not afraid of bears with 3220 pointsxjrguy is not afraid of bears with 3220 pointsxjrguy is not afraid of bears with 3220 pointsxjrguy is not afraid of bears with 3220 points
Rep Power: 34
Quote:
Originally Posted by hdscreens View Post
I was wondering myself just last week when I cleaned out the throttle body and the thought of changing the wires came to mind where the rest of the wires were located.


Questions to those that can answer:

My 05 seems to take a while to start up, it like turns stalls for a millisecond then fires up. Could this be due to the wires needing replacement? My 05 has about high 32k miles on it.

About how much does Dodge charge to replace wires? I would call and ask dodge myself but I keep forgetting to do that and will keep forgetting.
How is the condition of your battery?

When was the last time the plugs were checked or replaced?
  Reply With Quote Quick reply to this message

Old February 4th, 2009, 10:49 PM   #7
n00b

j-rho is offline
Join Date: Aug 2007
Posts: 22
j-rho is a B-Teamer with 50 points
Rep Power: 0
xjrguy, I didn't use a torque wrench. There are only 3-4 per side you can get a ratchet on to. I'm perhaps a bit cavalier, but having turned a lot of wrenches for a lot of years, I feel I can usually judge it right based on the size of the fastener and the amount of torque it took to take off. Lug nuts and drivetrain internals are the only thing that gets the torque wrench.

hdscreens, sounds to me like the battery is a bit low. My car sits for long periods, which drains the battery a bit, and until it is charged, it cranks and fires lazily.

I'd be interested to hear how much a dealer would charge for this job. I figure it'd be at least a few hundred bucks.
  Reply With Quote Quick reply to this message

Old February 4th, 2009, 10:58 PM   #8
Senior Member

xjrguy's Avatar

xjrguy is offline
Join Date: Apr 2008
Posts: 1,550
xjrguy is not afraid of bears with 3220 pointsxjrguy is not afraid of bears with 3220 pointsxjrguy is not afraid of bears with 3220 pointsxjrguy is not afraid of bears with 3220 pointsxjrguy is not afraid of bears with 3220 pointsxjrguy is not afraid of bears with 3220 pointsxjrguy is not afraid of bears with 3220 pointsxjrguy is not afraid of bears with 3220 pointsxjrguy is not afraid of bears with 3220 pointsxjrguy is not afraid of bears with 3220 pointsxjrguy is not afraid of bears with 3220 points
Rep Power: 34
Quote:
Originally Posted by j-rho View Post
xjrguy, I didn't use a torque wrench. There are only 3-4 per side you can get a ratchet on to. I'm perhaps a bit cavalier, but having turned a lot of wrenches for a lot of years, I feel I can usually judge it right based on the size of the fastener and the amount of torque it took to take off. Lug nuts and drivetrain internals are the only thing that gets the torque wrench.

hdscreens, sounds to me like the battery is a bit low. My car sits for long periods, which drains the battery a bit, and until it is charged, it cranks and fires lazily.

I'd be interested to hear how much a dealer would charge for this job. I figure it'd be at least a few hundred bucks.
Thanks for answering my question, I usually subscribe to the same thought process on TR's too. I do try to use them on brake caliper bracket bolts though, along with blue lock-tite.

I'd estimate based on your pics and description the wire job is $350 labor, not including parts.
  Reply With Quote Quick reply to this message

Old April 6th, 2009, 12:13 AM   #9
Senior Member

silvergts1998 is offline
Join Date: Dec 2003
Posts: 523
silvergts1998 made Varsity with 1190 pointssilvergts1998 made Varsity with 1190 pointssilvergts1998 made Varsity with 1190 pointssilvergts1998 made Varsity with 1190 pointssilvergts1998 made Varsity with 1190 pointssilvergts1998 made Varsity with 1190 pointssilvergts1998 made Varsity with 1190 pointssilvergts1998 made Varsity with 1190 pointssilvergts1998 made Varsity with 1190 points
Rep Power: 24
You can use these wire holders. Looks nice and works well!






  Reply With Quote Quick reply to this message

Thanks for the pics and input.
Old June 9th, 2009, 02:21 AM   #10
n00b

mattfeher is offline
Join Date: Feb 2009
Posts: 2
mattfeher is unremarkable with 10 points
Rep Power: 0
Thumbs up Thanks for the pics and input.

I have a 2004 Mamba Viper 111 of 200 White one and I am getting ready to do this same job. I am glade I came across ed your description. Thanks again for doing this and Nice Wheels. What are they and are they still the front 18" and rear 19" size?
  Reply With Quote Quick reply to this message

Old June 9th, 2009, 09:51 AM   #11
Senior Member

JGK95's Avatar

JGK95 is offline
Join Date: Jan 2003
Location: Chicago
Posts: 12,218
JGK95 is not afraid of bears with 61594 pointsJGK95 is not afraid of bears with 61594 pointsJGK95 is not afraid of bears with 61594 pointsJGK95 is not afraid of bears with 61594 pointsJGK95 is not afraid of bears with 61594 pointsJGK95 is not afraid of bears with 61594 pointsJGK95 is not afraid of bears with 61594 pointsJGK95 is not afraid of bears with 61594 pointsJGK95 is not afraid of bears with 61594 pointsJGK95 is not afraid of bears with 61594 pointsJGK95 is not afraid of bears with 61594 points
Rep Power: 434
Quote:
Originally Posted by mattfeher View Post
Nice Wheels. What are they and are they still the front 18" and rear 19" size?
I think they're forgelines. Nice wheels x2.



Jay K.

PS. Nice write up on the sparkplug wire change. Rep.
  Reply With Quote Quick reply to this message

Old June 16th, 2009, 05:10 PM   #12
n00b

j-rho is offline
Join Date: Aug 2007
Posts: 22
j-rho is a B-Teamer with 50 points
Rep Power: 0
Those wheels are CCW - the SP16A.
  Reply With Quote Quick reply to this message

Old January 29th, 2010, 09:52 AM   #13
Enthusiast

Ghoust's Avatar

Ghoust is offline
Join Date: Nov 2009
Posts: 121
Ghoust is a B-Teamer with 70 points
Rep Power: 0
how long did it take you to do this?
  Reply With Quote Quick reply to this message

Old July 23rd, 2013, 01:06 PM   #14
n00b

Vt3n's Avatar

Vt3n is offline
Join Date: Jun 2012
Location: Oahu,Hi
Posts: 5
Vt3n is unremarkable with 10 points
Rep Power: 0
This hits the nail right on the head for me, I was looking for something of this nature for my 04 vert! Thanks a million!!!
  Reply With Quote Quick reply to this message

Old September 13th, 2014, 05:55 PM   #15
n00b

Viper131's Avatar

Viper131 is offline
Join Date: Sep 2014
Location: Herndon VA
Posts: 5
Viper131 is unremarkable with 10 points
Rep Power: 0
Was able to do this on my Viper thanks to this thread !

Dead on about needing the stubby wrench.
  Reply With Quote Quick reply to this message

Old February 24th, 2015, 12:06 PM   #16
n00b

jwolf's Avatar

jwolf is offline
Join Date: Jun 2011
Location: Vincennes IN
Posts: 21
jwolf is unremarkable with 40 points
Rep Power: 0
A Gen II is easier:
http://youtu.be/TY06dAk6Al4
  Reply With Quote Quick reply to this message
